| Fixed | e748 |
Fri Jun 9 14:41:54 2017 |
e748 | CATS | General | | Runs 1 - 4 |
| Tests alpha source, dummy data |
| Pinned | e748 |
Fri Jun 9 15:49:46 2017 |
Valérie Lapoux | MUST2 | Hardware | | MUST2 configuration |
| The MUST2 configurations for telescopes in the chamber and low/High voltage Caen crate are given in the attached file. |
| Attachment 1: Confige748MUST2alimHVandLV.pdf
|
|
| Attachment 2: préparationMUST2forE748.pdf
|
|
| Pinned | e748 |
Fri Jun 9 15:51:44 2017 |
Valérie Lapoux | MUST2 | Hardware | | General Trigger GMT for MUST2 electronics |
| The GMT configuration for the trigger inputs and the inputs from MUST2 electronics are given in the file. |
| Attachment 1: DaqElectronicsMUST2gmtforE748.pdf
|
|
| Fixed | e748 |
Mon Jun 12 11:34:07 2017 |
e748 | MUST2 | Hardware | | MUVI cars setup |
We had problem with MUVI1 (pre serie 1) not working properly when a telescope was pluggeg (but fine otherwise).
Charles Houarner changed the card to MUVI serie 5, and the card is now working. |
| Fixed | e748 |
Mon Jun 12 11:36:34 2017 |
e748 | MUST2 | Hardware | | I2C error on Telescope |
At the Moment we got I2C error on the following detectors:
- T5 : waiting for SL cables
- T7 : waiting for SL cables
- T8 : waiting for SL cables
|
| Fixed | e748 |
Mon Jun 12 11:50:34 2017 |
e748 | CATS | Software | | Settings QDC |
Gates QDC CATS1X, CATS1Y, CATS2X, CATS2Y: 0.996
Pedestal QDC CATS1X, CATS1Y, CATS2X: 0.5
Pedestal QDC CATS2Y: 0.699 |
| Fixed | e748 |
Mon Jun 12 11:52:16 2017 |
e748 | CATS | General | | Run 6 and 7: Calibration Runs CATS |
Run 6: Calib CATS1 X&Y
--> Full, x2, x5, pedestal
Run 7: Calib CATS2 X&Y
--> Full, x2, x5, pedestal |
| Attachment 1: Capture.png
|
|
| Fixed | e748 |
Mon Jun 12 11:55:27 2017 |
e748 | CATS | General | | Run 5 - JUNK pulser run on CATS1 |
Dummy run with pulser.
JUNK |
| Fixed | e748 |
Mon Jun 12 14:09:24 2017 |
e748 | CATS | Software | | calibration coefficients Runs 6-7 |
columns are for 1st order calib (y= ax + b):
pedestal - b - a |
| Attachment 1: CATS_Pulser_Calib_Run6-7.png
|
|
| Attachment 2: CATS1_X.e748
|
1
0.00000e+00 0.00000e+00 0.00000e+00
6.38260e+02 -6.08953e+01 1.01145e+00
7.02094e+02 -8.39978e+01 1.06177e+00
0.00000e+00 0.00000e+00 0.00000e+00
4.34169e+02 1.90365e+02 1.08863e+00
4.86655e+02 1.26902e+02 1.01699e+00
2.69020e+02 2.55904e+02 1.06474e+00
2.86136e+02 1.62798e+02 1.10382e+00
5.32430e+02 -1.33005e+02 1.03548e+00
6.01130e+02 4.56982e+00 1.01121e+00
6.48511e+02 1.47200e+02 9.92624e-01
6.79087e+02 -5.44545e+00 1.01861e+00
6.88420e+02 -2.20034e+01 1.06801e+00
6.09122e+02 -8.54259e+01 9.87110e-01
6.62421e+02 -1.66007e+01 1.02242e+00
6.53074e+02 0.00000e+00 1.00000e+00
3.79922e+02 1.76312e+02 1.00870e+00
4.29463e+02 9.82418e+01 1.00882e+00
5.39244e+02 1.14624e+02 9.69279e-01
5.43689e+02 1.32478e+02 1.01108e+00
6.17247e+02 1.49071e+02 9.26403e-01
4.90180e+02 1.75656e+02 9.51706e-01
4.48837e+02 1.14439e+02 9.53718e-01
3.81575e+02 1.67780e+02 9.86113e-01
3.92670e+02 1.30896e+02 9.47817e-01
5.66231e+02 1.39447e+02 9.70747e-01
4.89253e+02 -1.54481e+01 1.00288e+00
0.00000e+00 0.00000e+00 0.00000e+00
|
| Attachment 3: CATS1_Y.e748
|
1
0.00000e+00 0.00000e+00 0.00000e+00
0.00000e+00 0.00000e+00 0.00000e+00
4.23571e+02 -3.05648e-01 9.97127e-01
5.44313e+02 5.24416e+01 9.45735e-01
3.96663e+02 -3.75587e+02 2.12947e+00
4.56532e+02 -1.80711e+02 1.28066e+00
6.13523e+02 -4.47056e+00 1.00511e+00
6.41192e+02 3.98150e+01 9.33602e-01
7.25740e+02 -7.31697e+02 1.74894e+00
5.99601e+02 -1.68694e+01 1.00780e+00
6.24716e+02 -4.22425e+01 1.07437e+00
4.53031e+02 -1.66251e+01 1.01074e+00
4.26326e+02 1.15322e+02 1.07804e+00
5.86337e+02 2.84371e+01 1.00511e+00
5.65290e+02 -1.68694e+01 1.00780e+00
4.28282e+02 3.76757e+00 9.99775e-01
4.30279e+02 2.11141e+02 9.30243e-01
5.25136e+02 4.63544e+01 9.18503e-01
4.33706e+02 1.88179e+01 9.70751e-01
4.38891e+02 3.75208e+01 1.01769e+00
5.67697e+02 4.96283e+01 9.59301e-01
5.37884e+02 5.65257e+01 9.47027e-01
4.85582e+02 9.95036e+01 9.20945e-01
5.04006e+02 2.03915e+02 9.34450e-01
4.07154e+02 -5.77408e+01 1.16653e+00
6.23211e+02 -1.51856e+00 9.10178e-01
4.38040e+02 1.75168e+02 9.06059e-01
4.54268e+02 1.40872e+02 5.91949e-01
|
| Attachment 4: CATS2_X.e748
|
1
0.00000e+00 0.00000e+00 0.00000e+00
3.34587e+02 2.00650e+02 1.07934e+00
4.94461e+02 -6.35325e+00 1.08172e+00
5.67588e+02 4.06388e+01 1.02712e+00
4.50661e+02 5.29033e+01 9.90188e-01
4.45840e+02 1.02356e+02 9.19885e-01
4.06916e+02 2.63410e+02 9.44240e-01
4.40557e+02 3.17208e+01 9.79725e-01
5.72217e+02 6.52334e+00 9.68168e-01
7.23475e+02 -5.25592e+00 1.01744e+00
6.53050e+02 1.91603e+01 1.02632e+00
6.95528e+02 3.84150e+00 1.00936e+00
6.20395e+02 -2.39370e+01 1.04553e+00
5.32977e+02 1.49637e+00 1.03400e+00
5.26391e+02 1.00334e+01 1.03468e+00
6.93313e+02 -2.10039e-12 1.00000e+00
4.39279e+02 1.23666e+02 1.03319e+00
5.69248e+02 6.26484e+01 9.77047e-01
4.75658e+02 7.99574e+01 1.03863e+00
6.30330e+02 8.01632e+01 1.02125e+00
6.21476e+02 1.32034e+02 1.00152e+00
6.17823e+02 1.10678e+02 9.70194e-01
1.05395e+03 -4.01065e+02 1.00000e+00
5.48898e+02 1.11425e+02 1.02565e+00
0.00000e+00 0.00000e+00 0.00000e+00
4.91880e+02 -7.12089e+01 1.05674e+00
5.23732e+02 -9.95157e+00 9.96339e-01
0.00000e+00 2.63452e+03 1.08960e+00
|
| Attachment 5: CATS2_Y.e748
|
1
0.00000e+00 0.00000e+00 0.00000e+00
2.74396e+02 1.02120e+02 9.85473e-01
2.63940e+02 8.44459e+01 1.09039e+00
3.10101e+02 -1.34890e+01 1.06472e+00
3.56091e+02 2.22788e+02 1.09166e+00
3.08747e+02 5.15573e+01 1.04627e+00
3.61903e+02 1.80754e+02 1.08510e+00
4.38887e+02 -1.37139e+01 1.17610e+00
4.04312e+02 8.30217e+01 9.61538e-01
6.29621e+02 -2.24902e+01 9.88296e-01
4.81956e+02 4.22236e+01 9.88296e-01
2.51348e+02 2.04972e+02 1.00132e+00
1.42958e+02 2.83350e+02 1.11865e+00
3.68773e+02 6.61946e+01 1.05293e+00
3.25749e+02 5.25261e+01 1.01360e+00
3.56744e+02 0.00000e+00 1.00000e+00
3.82595e+02 6.09758e+01 1.01496e+00
3.10987e+02 -1.67088e+01 1.02123e+00
4.15384e+02 5.97885e+01 1.01037e+00
2.96425e+02 1.02513e+02 1.01496e+00
4.61335e+02 7.49035e+01 1.00449e+00
2.85142e+02 1.01033e+02 9.42917e-01
3.60418e+02 4.49600e+01 1.09385e+00
3.15124e+02 6.42529e+01 8.96437e-01
2.86575e+02 1.37989e+02 1.01011e+00
3.95809e+02 1.96327e+01 9.08646e-01
5.52370e+02 4.39471e+01 9.16091e-01
3.66064e+02 1.23284e+02 5.85140e-01
|
| Fixed | e748 |
Mon Jun 12 16:56:36 2017 |
e748 | OTHER | General | | e748 Proposal |
| Experiment proposal |
| Attachment 1: Matta_PAC_GANIL_June_2016_v3.pdf
|
|
| Fixed | e748 |
Mon Jun 12 22:48:45 2017 |
Valérie Lapoux | MUST2 | General | | Tests of the DAQ with the Alpha Source |
12Th June. 3-peak Alpha source rotated towards the telescopes MM1 to MM4 (square wall of 4 telescopes).
MUVI configurations are fixed on the DAS. See pictures below. Thresholds : 402 keV.
We have DAS error messages for telescopes T2 and T7 with problems of data transmission, "I2C errors" = logic signals problems, maybe due to
bad cable connection inside the reaction chamber.
This problem should be fixed on 13th June looking at the cables in the chamber.
GMT trigger configuration: see picture, all telescopes T1 T3 T4 T5, T6 and T8.
T2 and T7 not included in the trigger inputs.
FAG window : 500 ns; Validation width 5.0 µs.
We can see the three peaks on the telescopes T1 T3 and T4 which are in the trigger (spectra taken during 30 minutes for checking).
T6 (in the trigger also) is placed at 90 deg and it can detect also some alphas. |
| Attachment 1: GMTconfig12juin.png
|
|
| Attachment 2: GMTconfigSourceAlpha.png
|
|
| Attachment 3: ConfigCAStel1Muvi1.png
|
|
| Attachment 4: DASmuvi1config.png
|
|
| Attachment 5: ConfigPhysMuvi1Cas1Thresh.png
|
|
| Attachment 6: MM1to4stripYsrcAlpha.png
|
|
| Attachment 7: SpectresAlpha_12juin.png
|
|
| Attachment 8: SetUpMateGainShaper.png
|
|
| Pinned | e748 |
Tue Jun 13 11:14:23 2017 |
Valérie Lapoux | MUST2 | General | | GMT configuration, FAG |
The Gatconf parameter is now defined in the action file.
The new configuration for GMT (see chronogramme plot) is attached, with the FAG window width set at 100 ns. |
| Attachment 1: GMTconfigOKMust2FAG100ns.png
|
|
| Attachment 2: GMTtrigParamActions.png
|
|
| Attachment 3: GMTparamDASgatconf.png
|
|
| Fixed | e748 |
Wed Jun 14 12:13:00 2017 |
e748 | MUST2 | Hardware | | MUST2 I2C Err debugging |
It appears several SL cables are faulty.
To avoid manipulation of all the cable we now have T1-4 working. These required to scavenge SL T5 and give it to T2.
T5 is working but have no SL cables.
T7 and T8 have faulty SL cables; but has not been fully tested otherwise.
We are meeting with the cable lady (maude) this afternoon to see if she can check the cables and repair them.
CsI T6 still an issue
UPDATE: Cable send to ASCO company for repair. T6 fixed. |
| Pinned | e748 |
Thu Jun 15 10:16:03 2017 |
Valérie Lapoux | MUST2 | Hardware | | Electronics for GMT trigger and FAG |
The GMT is used in a mode where we do not make coincidence and decision, GMT entries are single and all accepted as triggers of the DAQ.
The FAG window for the GMT should be set at a low value, typically 100 ns. |
| Attachment 1: DaqElectronicsMUST2gmtforE748.pdf
|
|
| Fixed | e748 |
Thu Jun 15 17:51:15 2017 |

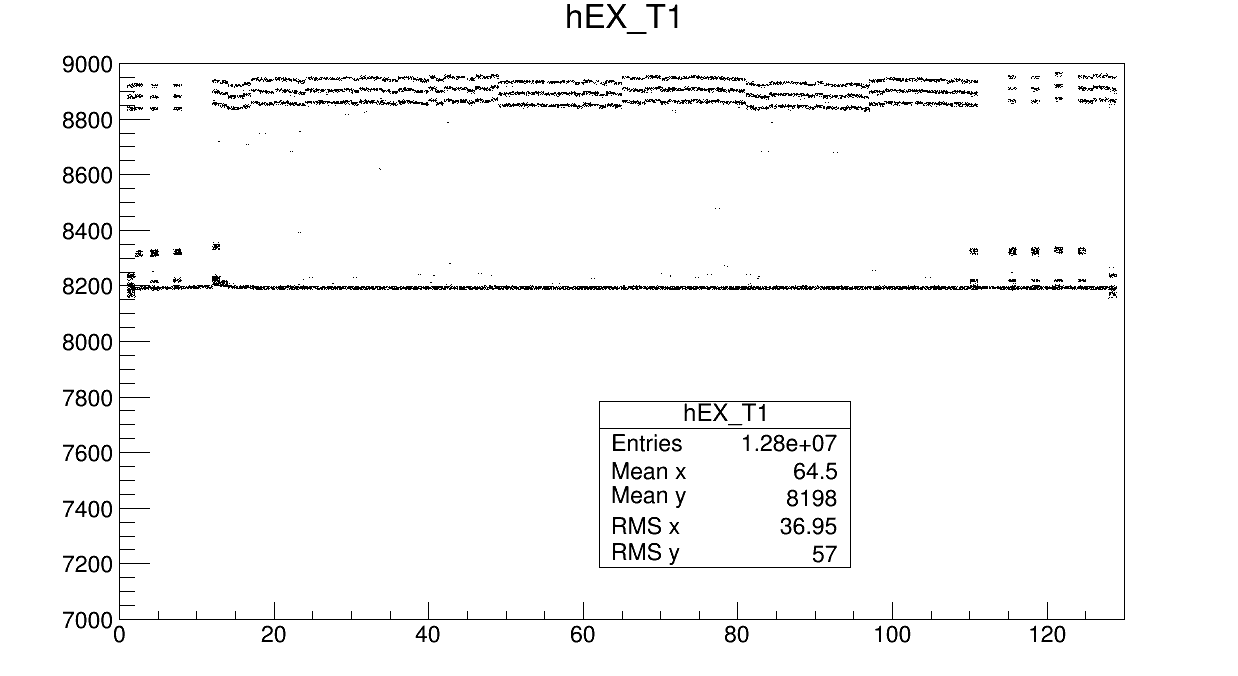

e748 | RUN | General | 3-alpha | Run 5-7 |
run5
alpha source
telescopes T1-T4 and T6
T1X STRIP 45 not working properly , 121 with noise
T1Y Strips 123,124 missing
T2X 3, 5, 6, 8, 9, 10, 11, 12, 111, 112, 113, 114, 116, 117, 119, 120, 122, 123 missing
T2Y 33, 108
T4X 10, 128
T4Y 65, 29, 123 (missing) 66 (muffee crazy)
run6
JUNK
run7
Added pedestal in all telescopes
T6Y 2nd part of strips not there(?) 65 to 128 strips not there (WHY?)
strip 2 missing |
| Fixed | e748 |
Fri Jun 16 09:57:54 2017 |
e748 | RUN | General | 3-alpha | Run 11 |
| RUN 11 : alpha calibration with suppression of zeros ( & alignment of pedestals) for all night |
| Fixed | e748 |
Fri Jun 16 09:59:00 2017 |

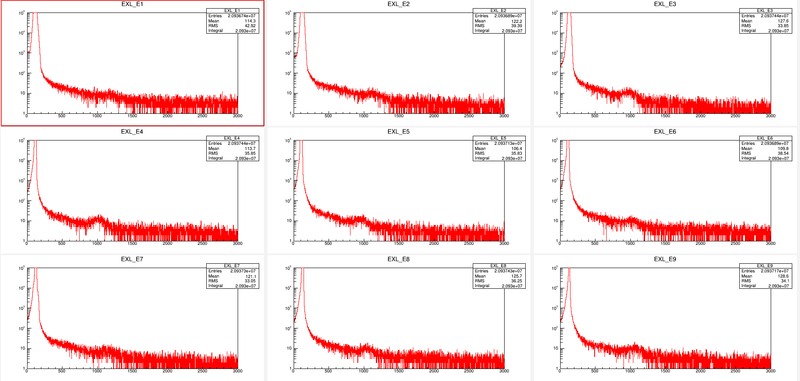

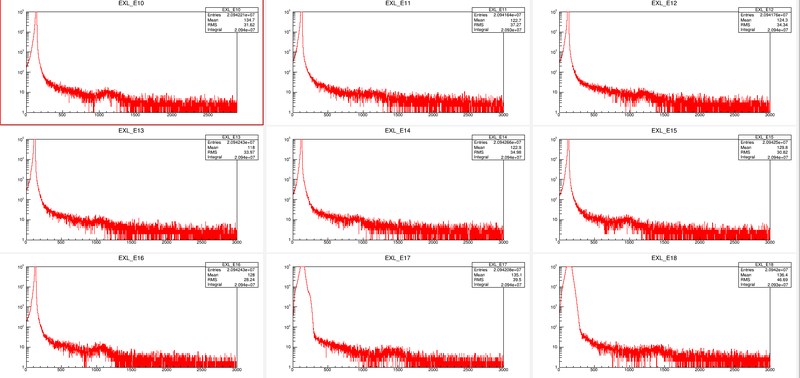

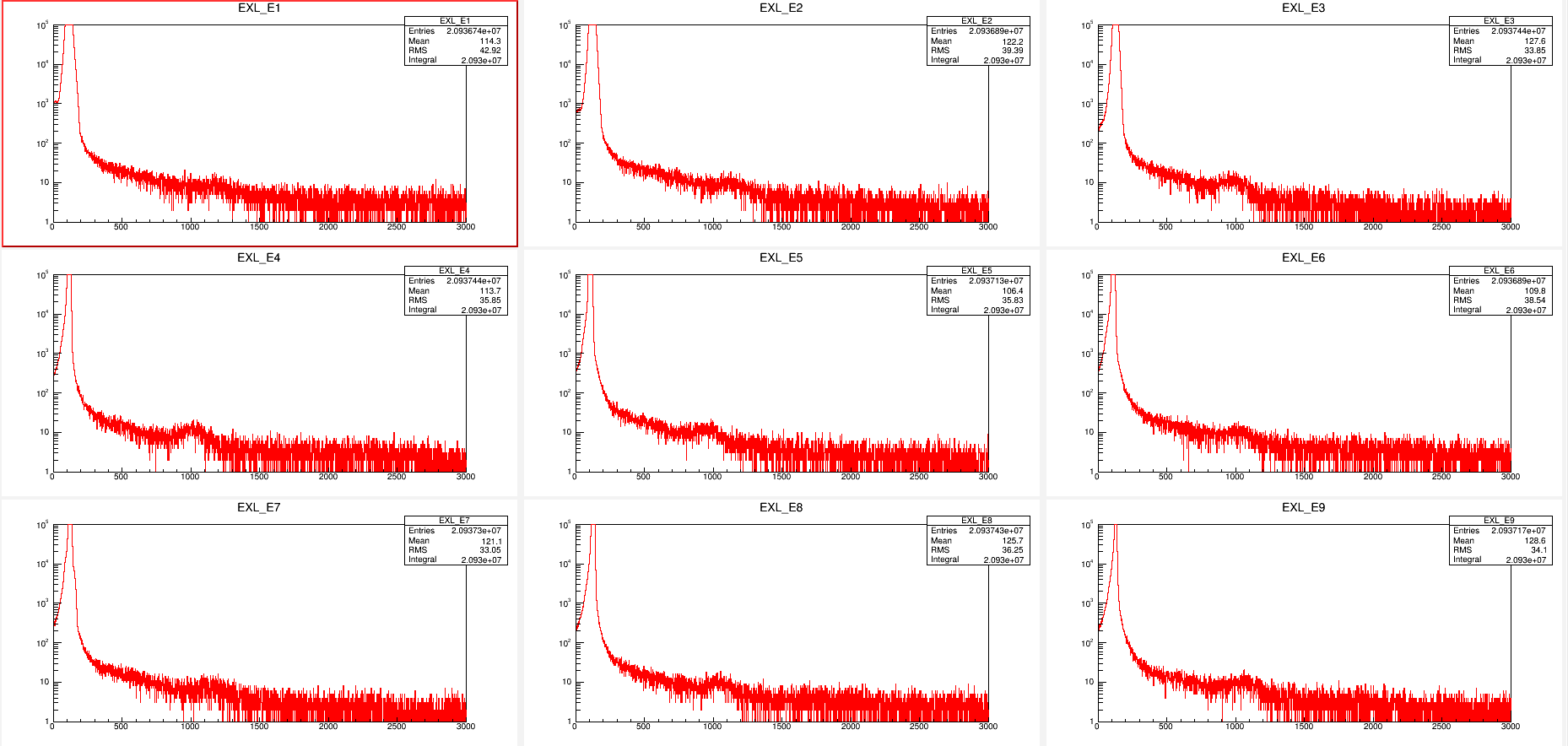

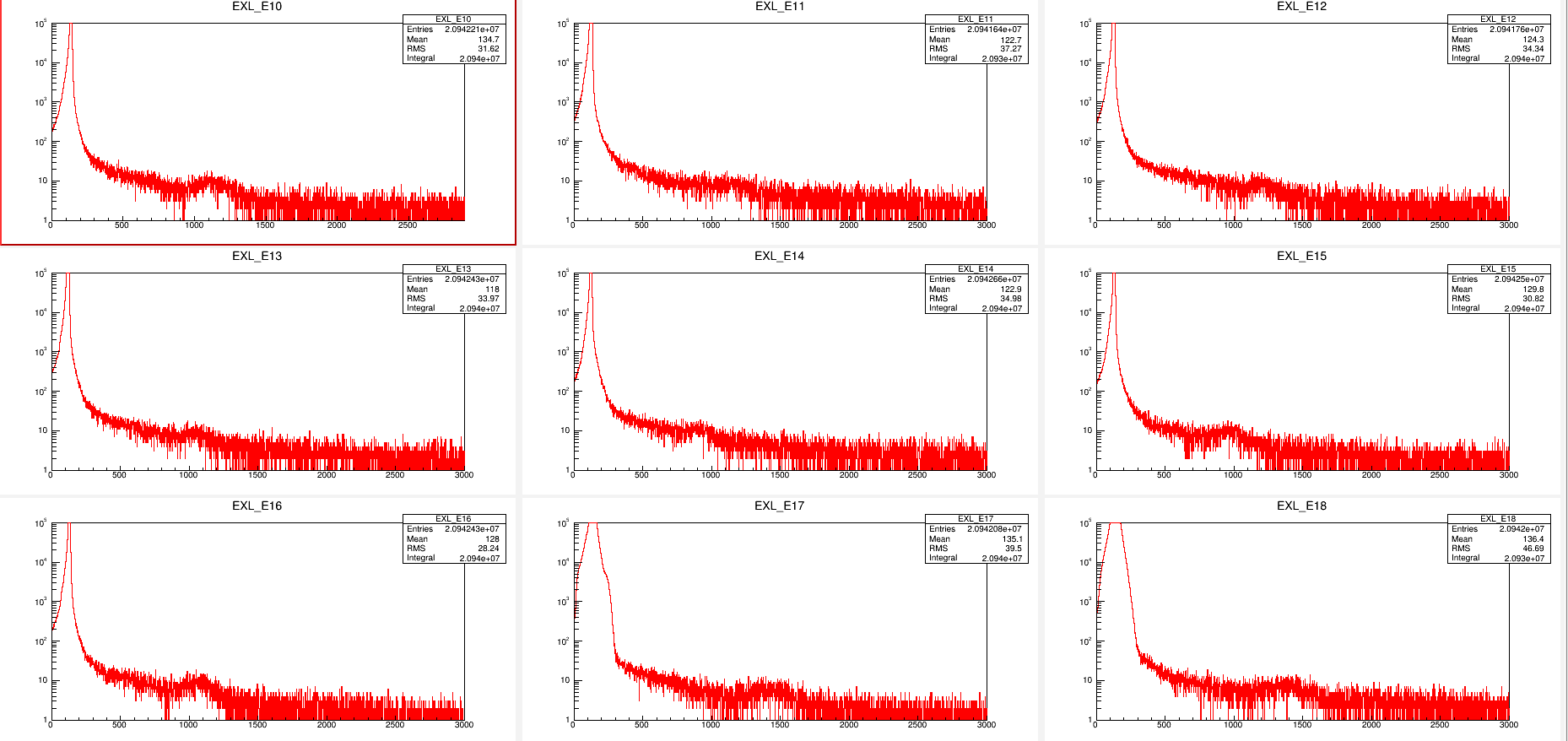

e748 | RUN | General | 60Co | Run 12 |
RUN 12 : EXL trigger in GMT
+ gamma source 60Co
 |
| Fixed | e748 |
Sat Jun 17 10:22:43 2017 |
Adrien Matta | EXL | Hardware | | EXL ADC gate |
EXL ADC is now setup with individual gate on the ADC.
We also put the threshold higher to reduce the rate and managed to work on timing.
We still think we need to delay the trigger output from the Mesytec module so the GMT is not triggered too soon.
However its appears that the trigger arrive 40-60us before the signal. Not sure if the AI output of the ADC is working properly, need to check this with Fred.
After checking the signal on the scope out of the MSC16 everything is in time. |
| Fixed | e748 |
Sat Jun 17 10:27:26 2017 |
Adrien Matta | ONLINE | Software | | Starting the GRU online analysis |
We setup a script to start the right environment to run GRU, ganil2root and nptool.
The script is located in /home/muvi/e748 and can be accessed by just typing online in the terminal.
This will start bash and source the relevant files.
Online and offline GRU script are located in the /home/muvi/e748/nptool/Projects/e748/online and /home/muvi/e748/nptool/Projects/e748/offline respectively.
The GUser class in both folder need to be compiled using the provide Makefile (so just do make after editing the GUser.cxx and GUser.h).
To start the GRU spectra server for online go to the online folder and type GRU Online.cxx
To convert a single file from .dat to .root go to the offline folder and type GRU Offline.cxx |
| Fixed | e748 |
Sat Jun 17 10:32:25 2017 |
Adrien Matta | ONLINE | Software | | Online/Offline list of task |
We need to do the following improvement to the online / offline environment:
- Provide two separates script for starting Online and Offline environment, that goes directly to the right folder. : Done
- Make an Offline program instead of a script, so we can provide argument : Done bu Valerian and Adrien
- Make a bash script for automatic conversion of the runs : Done by Valerian
|
