Message ID: 4479     Entry time: Fri Apr 26 11:29:02 2019
Author: Valerian
ExpNbr: e744s
Type: OTHER
Category: Software
Status: Fixed
Target-Source: N/A
Subject: Notes about the electronic

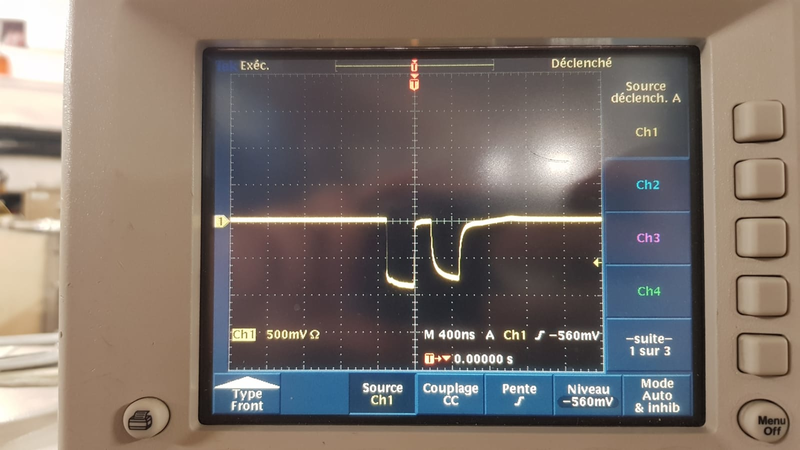

While doing the electronic scheme, I saw that the Inspection line was inducing a bad signal in the coincidence module between fag and CATS1. See joined image.

Also, I broke a cable between CATS1 Fifo and the delay box, the delay is now 2 ns longer.
Attachment 1: Signal_oscilloscope_coinc_module.jpeg  114 kB  Uploaded Fri Apr 26 12:33:48 2019  | Hide | Hide all
